- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Type
- Ethernet Switch

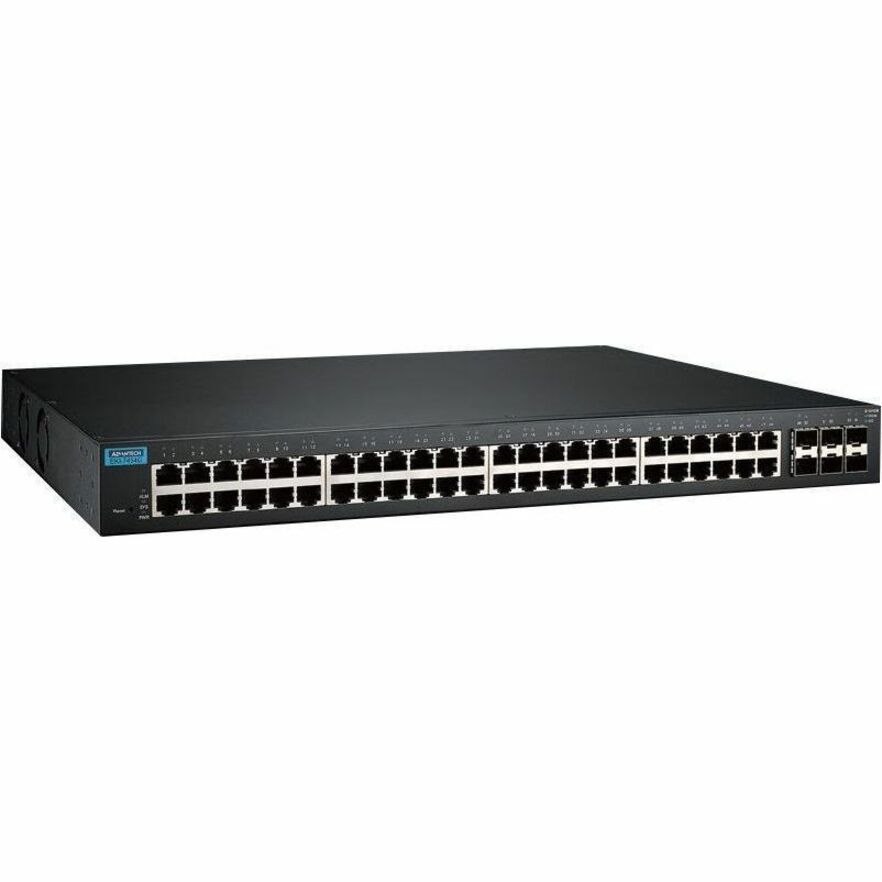

The EKI-7454G-6X is equipped with 48 Gigabit Ethernet ports plus 6 10G SFP+ ports. It is ideal for large-scale networks with server and surveillance applications, that involve high resolution videos and images, to achieve high performance and large-scale data transmission. Designed for rack-mount installation with 1U 19" design, integrates layer 2 switching software, delivering wire speed across all ports up to 216 Gbps for layer 2 and network nodes.
- Technical Information
- Features
- Broadcast Storm Control
- Remote Monitoring (RMON)
- Support Dual Image
- Strict Priority Queuing (SPQ)
- Interfaces/Ports
- Total Number of Network Ports
- 48
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 48 x 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port
- 6 x 1/10 Gigabit Ethernet SFP+ Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 1000Base-X
- 10GBase-X
- Maximum Data Transfer Rate
- 1.25 GB/s
- I/O Expansions
- Total Number of Expansion Slots
- 6
- Expansion Slot Type
- SFP+
- Number of SFP+ Slots
- 6
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.1Q
- IEEE 802.1D
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1p
- IEEE 802.1x
- Management & Protocols
- Manageable
- Yes
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Power Source
- AC
- Power Consumption
- 36 W
- Physical Characteristics
- Product Material
- Metal
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Enclosure
- Height
- 1.8"
- Width
- 17.4"
- Depth
- 10.6"
- Miscellaneous
- Application/Usage
- Network
- Server
- Surveillance
- Security
- Industrial
