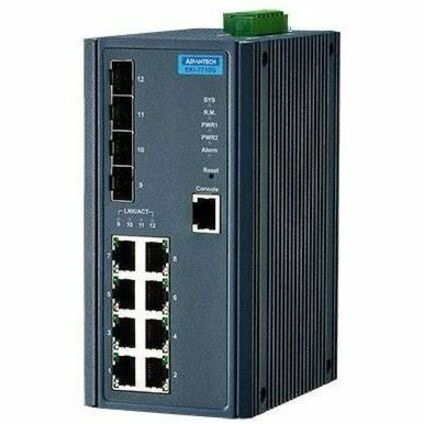

The EKI-7712G-4F and EKI-7712G-4FI provide users with abundant port options for connecting to a range of different device types with 8 Gigabit ports and 4 SFP (mini-GBIC) ports. These units are embedded with Advantech's IXM function, which can benefit users with fast deployment and can save considerably on engineering time and costs. The EKI-7712G series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, the series are equipped with X-Ring Pro, which can achieve ultra-highspeed recovery times of <20 ms, thus ensuring network stability. The EKI-7712G-4FI also features a wide operating temperature of -40 to 75°C and NEMA TS2 rating, making it ideal for use in traffic applications. Both the EKI-7712G-4F and EKI-7712G-4FI comply with EN50121-4 European railway standard requirements for emissions and railway platform and trackside deployment.
- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Series
- EKI-7712G
- Product Type
- Ethernet Switch
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Features
- Broadcast Storm Control
- Strict Priority Queuing (SPQ)
- Access Control List
- DHCP Relay
- Remote Monitoring (RMON)
- Support Dual Image
- IP40
- Interfaces/Ports
- Total Number of Network Ports
- 8
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 8 x 10/100/1000BASE-T/TX Gigabit Ethernet RJ-45 Network Port
- 4 x Gigabit Ethernet SFP (mini-GBIC) Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-TX
- 10/100/1000Base-T
- 1000Base-SX/LX
- 1000Base-LHX
- 1000Base-ZX
- Maximum Data Transfer Rate
- 128 MB/s
- I/O Expansions
- Total Number of Expansion Slots
- 4
- Expansion Slot Type
- SFP (mini-GBIC)
- Number of SFP Slots
- 4
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3x
- IEEE 802.1w
- IEEE 802.1D
- IEEE 802.1x
- IEEE 802.1Q
- IEEE 802.1ad
- IEEE 802.1ab
- IEEE 802.1s
- IEEE 802.1p
- IEEE 802.3ad
- Management & Protocols
- Manageable
- Yes
- Reliability
- MTBF
- 1377597 Hour
- Power Description
- Input Voltage
- 12 V DC
- 48 V DC
- Power Source
- DC
- Redundant Power Supply Supported
- Yes
- Power Consumption
- 12.10 W
- Plug/Connector Type
- Terminal Block
- Physical Characteristics
- Product Material
- Metal
- Form Factor
- Enclosure
- DIN Rail Mountable
- Wall Mountable
- Height
- 6"
- Width
- 2.9"
- Depth
- 4.1"
- Miscellaneous
- Application/Usage
- Network
- Traffic
- Industrial
- Security
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
