The DKM modular extenders are comprised of Modular Housing chassis with 2, 4, 6, or 21 slots and transmitter and receiver interface cards. The DKM extender setup provides the widest range of possible combinations, which makes it easy to customize for your specific application. You will need to contact Black Box to have them assembled to fit your application. To configure your DKM HD Video and Peripheral Matrix setup, call our FREE Tech Support.
- General Information
- Manufacturer
- Black Box Corporation
- Manufacturer Website Address
- http://www.blackbox.com
- Brand Name
- Black Box
- Packaged Quantity
- 1
- Product Type
- KVM Extender Transmitter
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Connectivity Technology
- Wired
- Maximum Operating Distance
- 32808.40 ft
- Video
- Graphic Mode
- Full HD
- Maximum Video Resolution
- 1920 x 1080
- Interfaces/Ports
- USB
- Yes
- Number of USB Ports
- 1
- Physical Characteristics
- Transmitter Width
- 5"
- Transmitter Weight (Approximate)
- 10.58 oz
- Miscellaneous
- Package Contents

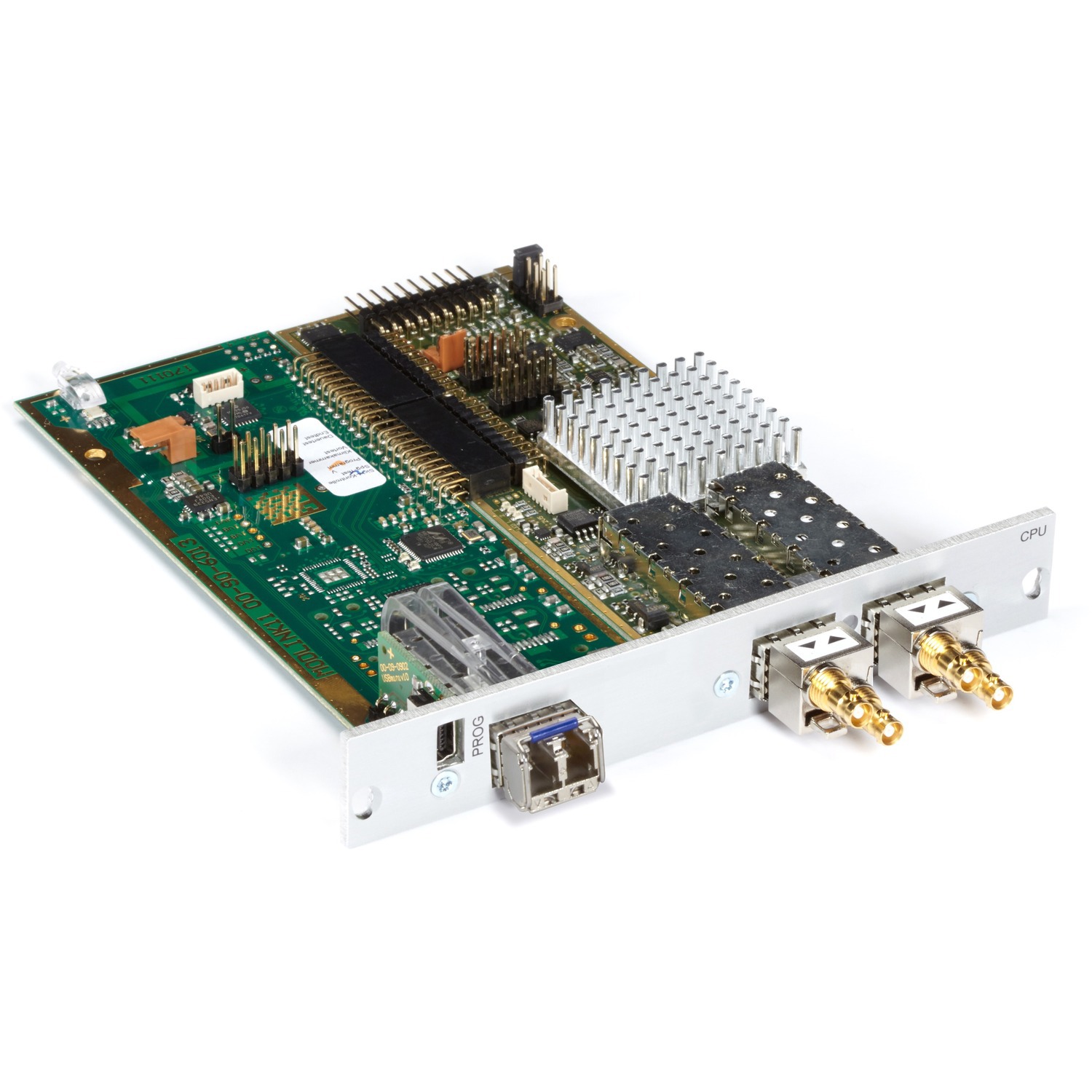

- DKM Modular Transmitter Card, SDI over SM Fiber
- 2 x BNC Cables
- Additional Information
This product works with:
- 21 Slot Modular KVM Extender Housing with Power Supply
- DKM Modular Extender Housing 2 Slot w/Power Supply
- Modular KVM Extender Housing 2 Slot w/5APower Supply
- Modular KVM Extender Housing 2 Slot w/ Redundant Power Supply
- Modular KVM Extender Housing 4 Slot w/5APower Supply
- Modular KVM Extender Housing 4 Slot w/ Redundant Power Supply
- Modular KVM Extender Housing 6 Slot w/ Back Plane Power Supply
- Modular KVM Extender Housing 6-Slot w/(2) Front-Mount Internal PSU
- Modular KVM Extender Housing 6 Slot w/ Power Supply
Product works with:
- DKM 2-Slot Chassis (ACXMODH2-R2, ACXMODH2R-R2, ACXMODH2R-P-R2)
- DKM 4-Slot Chassis (ACXMODH4-R2, ACXMODH4R-R2)
- DKM 6-Slot Chassis (ACXMODH6R-R2,ACXMODH6BPAC-R2, ACXMODH6FPAC-R2)
- DKM 21-Slot Chassis (ACXMODH21R)
- Environmentally Friendly
- Yes
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
- Country of Origin
- Germany
- TAA Compliant
- Yes
