- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Line
- Catalyst
- Product Series
- IE9300
- Product Type
- Ethernet Switch

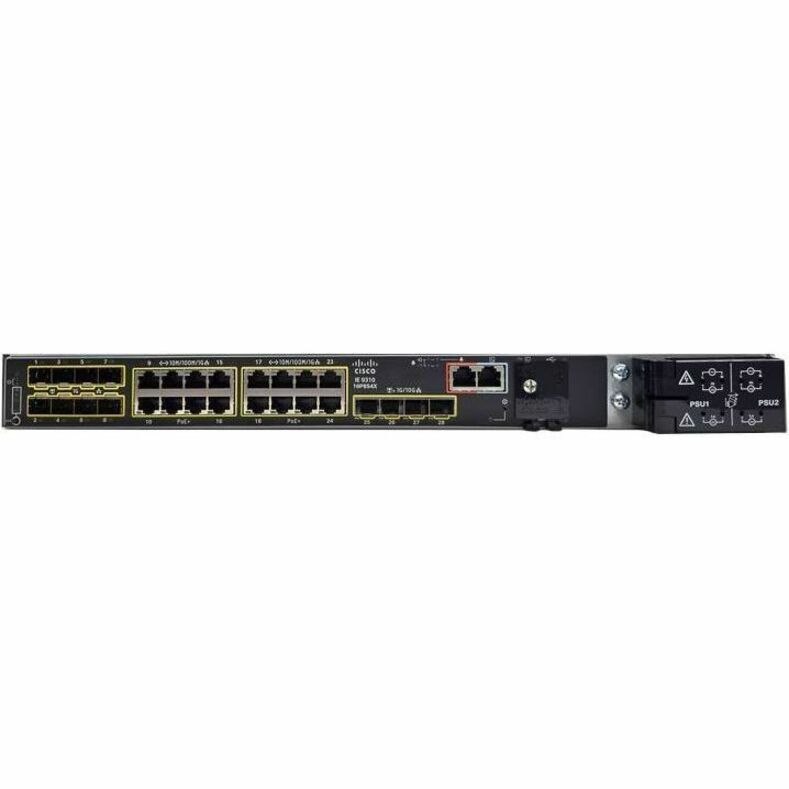

The Cisco Catalyst™ IE9300 Rugged Series ushers in mainstream adoption of Gigabit / 10 Gigabit Ethernet connectivity in compact 1RU, rack-mount switches that are purpose-built for a wide variety of industrial and extended enterprise applications.
Product overview
Cisco Catalyst IE9300 Rugged Series switches with 28 ports of Gigabit and 10 Gigabit Ethernet interfaces deliver high-speed Ethernet connectivity in a compact form factor and are designed for a wide range of industrial applications for which hardened products are required. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The switches are ideal for outdoor enclosures or harsh environments while adhering to overall IT network design, compliance, and performance requirements.
These switches run Cisco IOS® XE, an operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco® Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.
The Cisco Catalyst IE9300 Rugged Series can be managed with a powerful management tool, Cisco Catalyst Center, and can easily be set up with a completely redesigned user-friendly modern GUI tool called WebUI. The platform supports Full Flexible NetFlow (FNF) for real-time visibility into traffic patterns and threat analysis with support for Cisco Cyber Vision and Cisco Secure Network Analytics.
The Cisco IE9300 Rugged Series, by building a high-performance, reliable, and secure industrial network, provides the foundational infrastructure that transports and protects the massive amounts of data required for software-defined automation and Industrial AI applications to function effectively and deliver actionable insights for operations.
The IE9300 Rugged Series switches offer:
- Robust resiliency enabled by features such as dual ring design, Resilient Ethernet Protocol (REP), Parallel Redundancy Protocol (PRP)1, PROFINET, Media Redundancy Protocol (MRP) ring, High Availability Seamless Redundancy (HSR)1 ring, EtherChannel, integrated redundant power supplies, dying gasp, etc.
- True zero-touch replacement for middle-of-the-night or middle-of-nowhere failures
- Line-rate, low-latency forwarding
- Simplified software management
- Support for industrial automation protocols EtherNet/IP (CIP) and PROFINET
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Features
- Fanless
- Access Control List
- Unicast Storm Control
- VLAN Segmentation
- Zero-Touch Provisioning (ZTP)
- DHCP Snooping
- Dynamic ARP Inspection
- Shock/Vibration Stability
- Broadcast Storm Control
- High Availability Supported
- Yes
- Interfaces/Ports
- Total Number of Network Ports
- 16
- Uplink Port
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 16 x Gigabit Ethernet PoE+
- 8 x Gigabit Ethernet Expansion Slot
- 4 x 10 Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Optical Fiber
- Twisted Pair
- Ethernet Technology
- Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 1000Base-X
- 10GBase-X
- Maximum Data Transfer Rate
- 1.25 GB/s
- I/O Expansions
- Total Number of Expansion Slots
- 12
- Expansion Slot Type
- SFP
- SFP+
- Number of SFP Slots
- 8
- Number of SFP+ Slots
- 4
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.1ae
- IEEE 802.1D
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1x
- IEEE 802.1ab
- IEEE 802.3ad
- IEEE 802.3ab
- IEEE 802.3ah
- IEEE 802.3u
- IEEE 802.3z
- IEEE 802.1BA
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
- Management & Protocols
- Manageable
- Yes
- Data Link Protocols
- HTTP
- HTTPs
- Reliability
- MTBF
- 265827 Hour
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 300 W
- Power Source
- Power Supply
- AC/DC
- Redundant Power Supply Supported
- Yes
- Power Consumption
- 105 W
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Compact
- Height
- 1.7"
- Width
- 17.5"
- Depth
- 14"
- Weight (Approximate)
- 10.60 lb
- Miscellaneous
- Application/Usage
- Enterprise
- Business
- Network
- IP Camera
- Wireless Access Point
- Outdoor
- Industrial
- IP Phone
- Transportation
- Certifications & Standards
Electromagnetic emissions
- FCC 47 CFR Part 15 Class A
- EN 55032 Class A
- VCCI Class A
- AS/NZS CISPR 32 Class A
- CISPR 11 Class A
- CISPR 32 Class A
- ICES 003 Class A
- CNS15936
- EN 300 386
- EN 61000-3-2 Harmonic Current Emissions
- EN 61000-3-3 Voltage Fluctuations and Flicker
- KS C9832
Radio
- EN 303 413
Electromagnetic immunity
- EN55024/EN5035
- CISPR 24/CISPR35
- KS C9835
- EN 61000-4-2 Electro Static Discharge
- EN 61000-4-3 Radiated RF
- EN 61000-4-4 Electromagnetic Fast Transients
- EN 61000-4-5 Surge
- EN 61000-4-6 Conducted RF
- EN 61000-4-8 Power Frequency Magnetic Field
- EN 61000-4-10 Oscillatory Magnetic Field
- EN 61000-4-11 AC Voltage Dips
- EN 61000-4-29 DC Voltage Dips
- EN 301 489-19 and -1
Industry standards
- EN 61000-6-2 Industrial
- EN 61000-6-4 Industrial
- EN 61000-6-1 Light Industrial
- EN 61326 Industrial Control
- IEEE 1613:2009 Electric Power Stations Communications Networking
- IEC 61850-3 Electric Substations Communications Networking
- EN 50121-4
https://www.cisco.com/c/en/us/products/collateral/switches/catalyst-ie9300-rugged-series/catalyst-ie9300-rugged-series-ds.html
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
