- General Information
- Manufacturer
- Epson Corporation
- Manufacturer Website Address
- http://www.epson.com
- Brand Name
- Epson
- Product Line
- PowerLite
- Product Type
- 3LCD Projector
Bright, true-to-life images:
3-chip 3LCD technology and 6,200 lumens of equal color and white brightness
Full HD WUXGA resolution:
accepts up to 4K signal and provides 1920 x 1200 resolution for vibrant, high-definition images
Short throw lens with powerful optical zoom: with a 0.8 to 1.36 throw ratio and 1.7x optical zoom, achieve large images from a close distance; perfect for filling walls while avoiding shadows
Large, versatile display options:
easily create a display up to 400" diagonal in 16:10, plus ultra wide 16:6 and 21:9 aspect ratios for enhanced content display and visibility
Simplified installation:
compact and lightweight design featuring a wide vertical and horizontal lens shift, 1.7x optical zoom, 360-degree mounting, built-in geometric correction tools and a universal VESA mounting pattern
Low maintenance:
up to 30,000-hour laser light source and air filter2 in Extended Mode
Wireless networking and content sharing:
Wi-Fi 6/6E allows for fast, reliable wireless connectivity for screen casting , along with direct connection to the cloud-based service, Epson Projector Management Connected and WPA3-Enterprise security
Built-in NFC4:
reduces installation time of multiple projectors; read and write setting information using the Epson Projector Config Tool app
Optional attachable PixAlignTM camera:
adds powerful multi-projector tools including screen matching, auto color calibration blending assist for super wide displays and simple stacking6 without an external PC
Over-the-air updates:
allows user to optionally be alerted when a Firmware update is available
Enhanced connectivity:

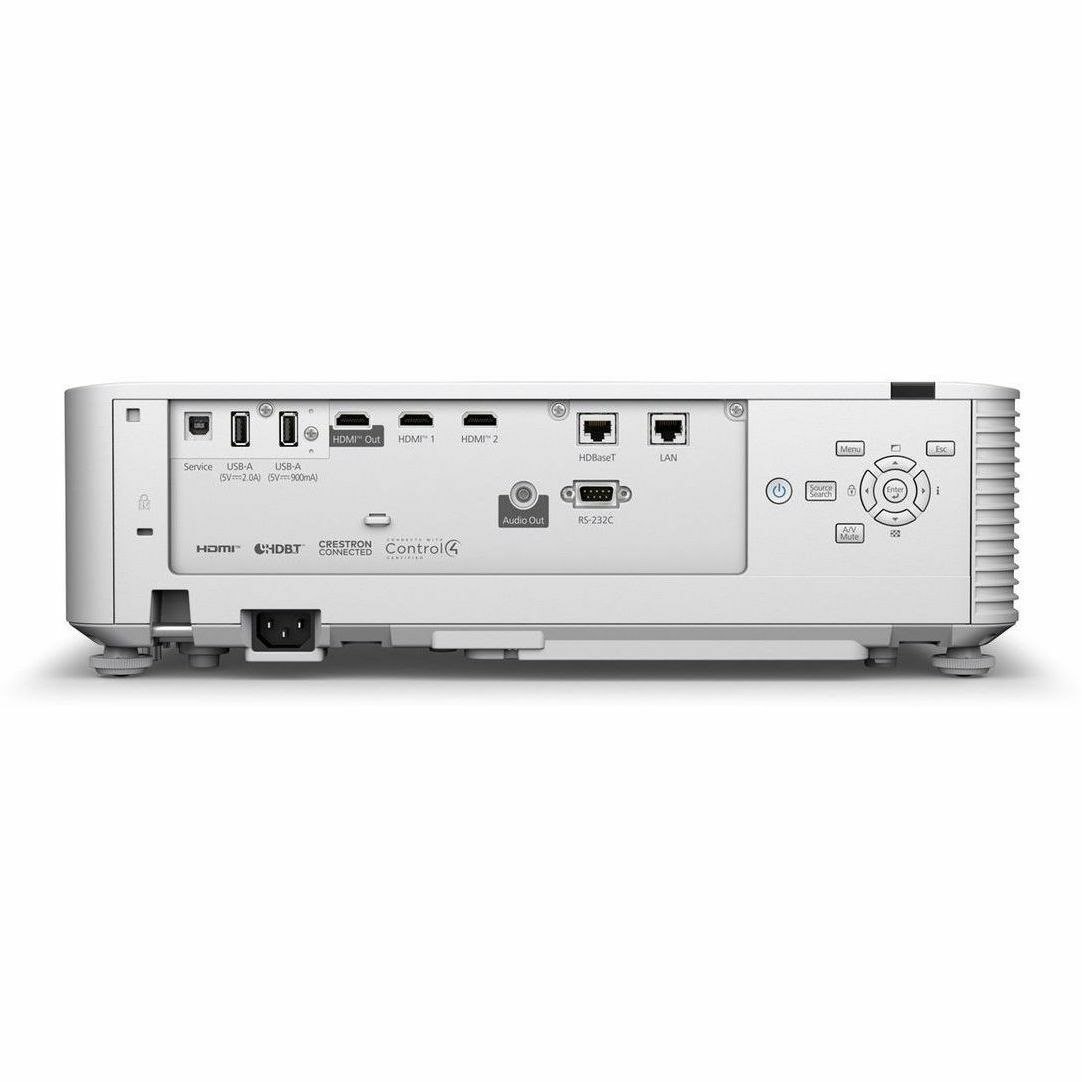

HDBaseT and HDMI two in and one out for daisy-chaining and signal monitoring
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Projection Method
- Front
- Rear
- Ceiling
- Vertical Scan Range
- 23.98 Hz - 60 Hz
- Projection Lens
- Throw Type
- Short Throw
- Minimum Focal Length
- 11.60 mm
- Maximum Focal Length
- 19.90 mm
- Minimum Diagonal Image Size
- 60"
- Maximum Diagonal Image Size
- 33.33 ft
- Optical Zoom
- 1.7x
- Maximum Projection Distance
- 54.33"
- Lamp
- Number of Lamps
- 1
- Lamp Type
- Laser Diode
- Normal Mode Lamp Life
- 20000 Hour
- Economy Mode Lamp Life
- 30000 Hour
- Image
- Standard Mode Brightness
- 6200 lm
- White Brightness
- 6200 lm
- Color Supported
- 1.07 Billion Colors
- Native Resolution
- 1920 x 1200
- Graphic Mode
- WUXGA
- Native Aspect Ratio
- 21:9
- Throw Ratio
- 0.8 to 1.36
- Contrast Ratio
- 5,000,000:1
- Video
- Video Signal Standard
- HDTV
- Output Scan Format
- 2160p
- Audio
- Speaker Included
- Yes
- Network & Communication
- Wireless LAN
- Yes
- Interfaces/Ports
- HDMI
- Yes
- USB
- Yes
- Network (RJ-45)
- Yes
- Battery Information
- Batteries Included
- Yes
- Power Description
- Voltage Frequency
- 60 Hz
- Operating Power Consumption
- 415 W
- Standby Power Consumption
- 2.40 W
- Physical Characteristics
- Product Color
- White
- Color Family
- White
- Form Factor
- Wall Mountable
- Ceiling Mountable
- Height
- 4.8"
- Width
- 17.3"
- Depth
- 12"
- Weight (Approximate)
- 22 lb
- Miscellaneous
- Package Contents
- PowerLite L690SU 3LCD Projector
- Power Cable
- Projector Remote Control with Batteries
- Quick Setup sheet
- Cable Cover
- Quick Setup poster
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
