- General Information
- Manufacturer
- Grandstream Networks, Inc
- Manufacturer Website Address
- http://www.grandstream.com
- Brand Name
- Grandstream
- Product Series
- GWN7700
- Packaged Quantity
- 1
- Product Type
- Ethernet Switch

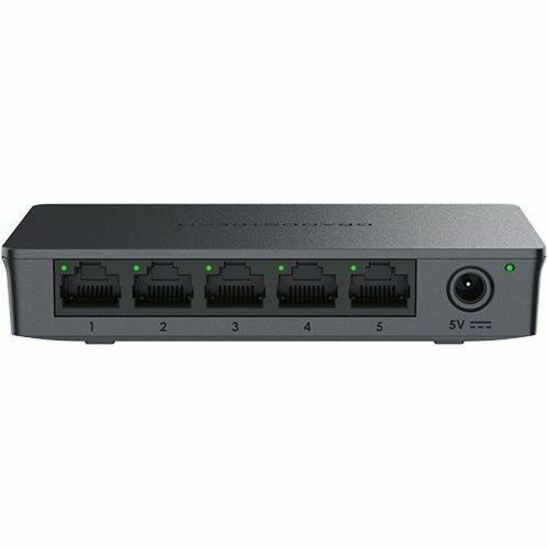

Unmanaged Network Switches
The GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables. Each port supports auto-negotiation to allow the GWN7700 series to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance. The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The plug-and-play GWN7700 series are the ideal unmanaged network switches for home offices and small-to medium businesses.
5/8/16/24/48 Gigabit RJ45 ports, 4 port PoE+ output (GWN7700P & GWN7701P), 8 port PoE+ output (GWN7701PA & GWN7702P)
Green technology reduces power consumption
LED Indicators; Per port: Link/Activity Per device: Power
Auto MDI/MDIX crossover for all ports
802.3 af/at compliant Up to 30W on each port, (GWN7700P/GWN7701P/ GWN7701PA/GWN7702P only)
Broadcast/Multicast/ Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
Supports long cable connection
QoS - Supports Default Strict Priority when present
- Technical Information
- Features
- Plug and Play
- Broadcast Storm Control
- Multicast Storm Control
- Unicast Storm Control
- Interfaces/Ports
- Total Number of Network Ports
- 5
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 5 x Gigabit Ethernet Network
- Media & Performance
- Media Type Supported
- Twisted Pair
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- Maximum Data Transfer Rate
- 128 MB/s
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.1p
- Management & Protocols
- Manageable
- No
- Power Description
- Power Source
- Power Adapter
- Power Consumption
- 1.70 W
- Physical Characteristics
- Product Material
- Plastic
- Form Factor
- Desktop
- Wall Mountable
- Height
- 1"
- Width
- 2.6"
- Length
- 4.7"
- Weight (Approximate)
- 3.53 oz
- Miscellaneous
- Package Contents
- GWN7700 Ethernet Switch
- 1 x Power Adapter
- 1 x QIG
- Application/Usage
- Home Office
- Business
- IP Phone
- IP Camera
- Wireless Access Point
- Network
- Small Business
- Medium Business
- Certifications & Standards
- FCC
- CE
- RCM
- IC
- UKCA
