- General Information
- Manufacturer
- MSI
- Manufacturer Website Address
- http://www.msi.com
- Brand Name
- MSI
- Product Series
- MAG
- Marketing Information

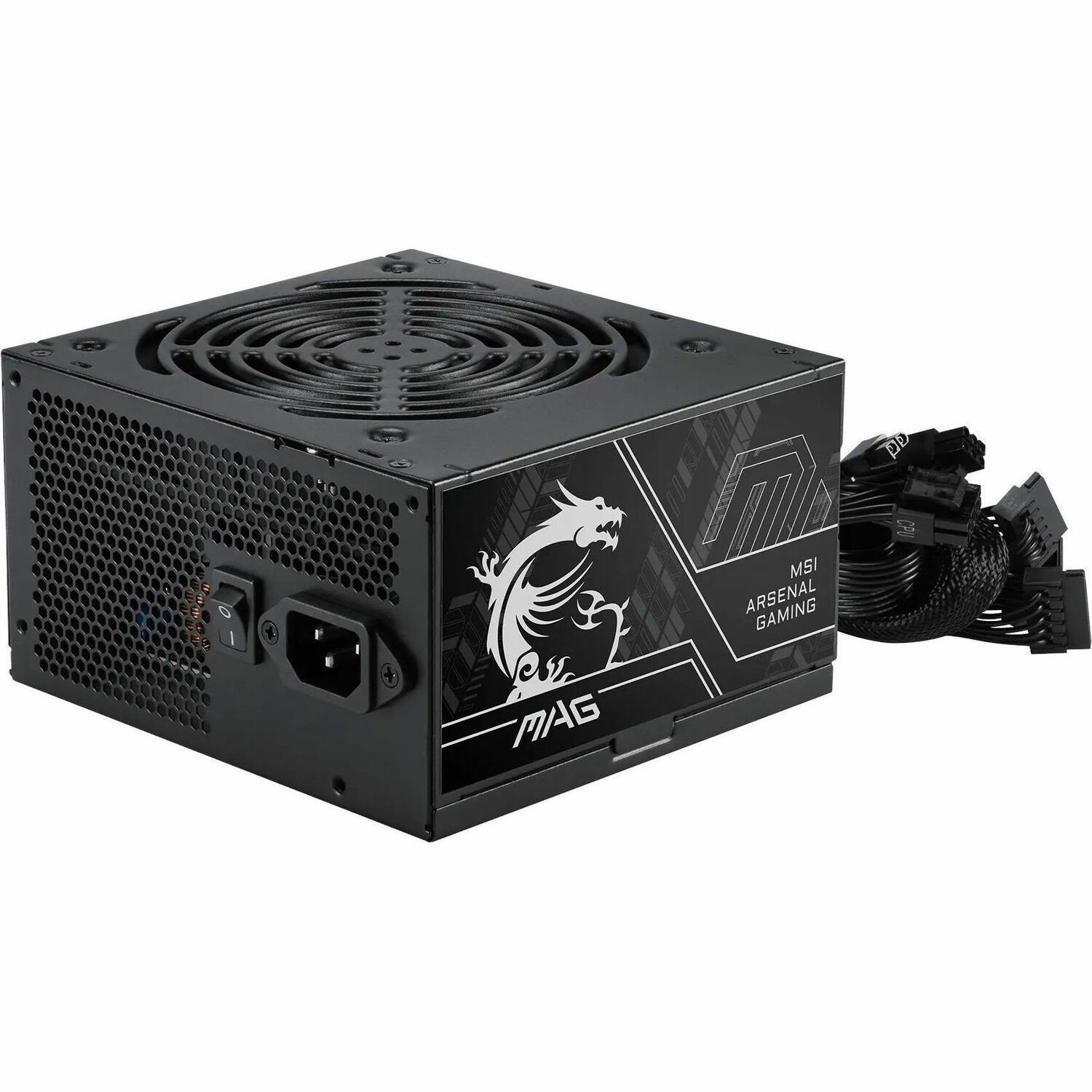

MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
80 PLUS STANDARD
The efficiency of your power supply directly influences your system's performance and your power consumption. The 80 PLUS certification promises lower energy consumption and 80% efficiency.
ACTIVE PFC DESIGN
The active PFC improves the efficiency of power output and provides a more stable environment for other PC components to operate in.
120MM LOW NOISE FAN
The 120mm fan reduces the noise generated while maintaining excellent heat dissipation.
FLAT CABLE EQUIPMENT
The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized.
Protection Design
Protection is designed to protect the unit mechanisms and provides comprehensive protection.
- OVP
- OTP
- SCP
- OVP
- UVP
- Product Type
- Power Supply
- Technical Information
- Specification Compliance
- ATX
- Efficiency
- 80%
- Power Factor Correction (PFC)
- Active
- Number of Fans
- 1
- Fan Bearing Type
- Sleeve Bearing
- Fan Diameter
- 120 mm
- Protection Type
- Over Current
- Over Voltage
- Over Power
- Short Circuit
- Over Temperature
- Under Voltage
- Modular
- No
- Features
- Low Noise
- Heat Dissipation
- Power Description
- Number of +12V Rails
- 1
- Input Voltage
- 120 V AC
- 230 V AC
- Input Voltage Range
- 100 V AC - 240 V AC
- Output Voltage
- 5 V DC
- 3.3 V DC
- 12 V DC
- -12 V
- 5 V SB
- Output Voltage Detail
- 5 V DC @ 15 A
- 3.3 V DC @ 15 A
- -12 V DC @ 0.3 A
- 5 V SB @ 2.5 A
- 12 V DC @ 46 A
- Output Current
- 15 A
- 46 A
- 300 mA
- 2.50 A
- Output Power
- 600 W
- Input Frequency
- 47-63Hz
- Interfaces/Ports
- Number of SATA Power Connectors
- 6
- PCI Express Connector
- Yes
- Number of (6+2 pin) PCI Express Power Connectors
- 2
- Number of (4+4 pin) CPU Power Connectors
- 1
- Physical Characteristics
- Form Factor
- ATX
- Height
- 3.4"
- Width
- 5.9"
- Depth
- 5.5"
- Miscellaneous
- Energy Efficiency Certification
- 80 Plus Standard
