- General Information
- Manufacturer
- MSI
- Manufacturer Website Address
- http://www.msi.com
- Brand Name
- MSI
- Product Line
- MAG
- Product Type
- Desktop Motherboard
With more cores' processors, thermal and power design is more important to make sure the temperature keeps lower. AUDIO BOOST: Reward your ears with studio grade sound quality. Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™
- Processor & Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- B660
- Total Processor Supported
- 1
- Processor Socket
- Socket LGA-1700
- Processor Generation Supported
- 12th Gen
- Processor Supported
- Pentium Gold
- Celeron
- Core i3
- Core i9
- Core i5
- Multi GPU Supported
- CrossFire
- Memory
- Number of Memory Slots
- 4
- Memory Form Factor
- UDIMM
- Maximum Memory Supported
- 128 GB
- Memory Technology
- DDR4 SDRAM
- Memory Speed Supported
- 5333 MHz
- 5200 MHz
- 5066 MHz
- 5000 MHz
- 4800 MHz
- 4600 MHz
- 4400 MHz
- 4266 MHz
- 4200 MHz
- 4000 MHz
- 3800 MHz
- 3733 MHz
- 3600 MHz
- 3466 MHz
- 3400 MHz
- 3333 MHz
- 3200 MHz
- 2933 MHz
- 2666 MHz
- 2400 MHz
- 2133 MHz
- Intel Optane Memory Ready
- Yes
- I/O Controller
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- RAID Levels
- 0
- 1
- 5
- 10
- Video
- Onboard Video
- CPU Dependent Video
- Audio
- Audio Channels
- 7.1
- Network & Communication
- Bluetooth
- Yes
- 2.5Gigabit Ethernet
- Yes
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11 a/b/g/n/ac/ax
- I/O Expansions
- Total Number of Expansion Slots
- 3
- Total Number of PCI Express Slots
- 3
- Number of PCI Express x1 Slots
- 1
- Number of PCI Express x16 Slots
- 2
- Interfaces/Ports
- Total Number of USB Ports
- 8
- Number of USB 2.0 Ports
- 4
- Number of USB 3.2 Ports
- 1
- Number of USB 3.2 Gen 2 Type-A Ports
- 3
- S/PDIF
- Yes
- HDMI
- Yes
- DisplayPort
- Yes
- Number of Network (RJ-45) Ports
- 1
- Onboard Interfaces
- Number of SATA Interfaces
- 6
- Number of M.2 Interfaces
- 2
- Total Number of Onboard USB Ports
- 7
- Number of Onboard USB 2.0 Ports
- 4
- Number of Onboard USB 3.2 Ports
- 3
- Physical Characteristics
- Form Factor
- Micro ATX
- Width
- 9.6"
- Depth
- 9.6"
- Miscellaneous
- Package Contents

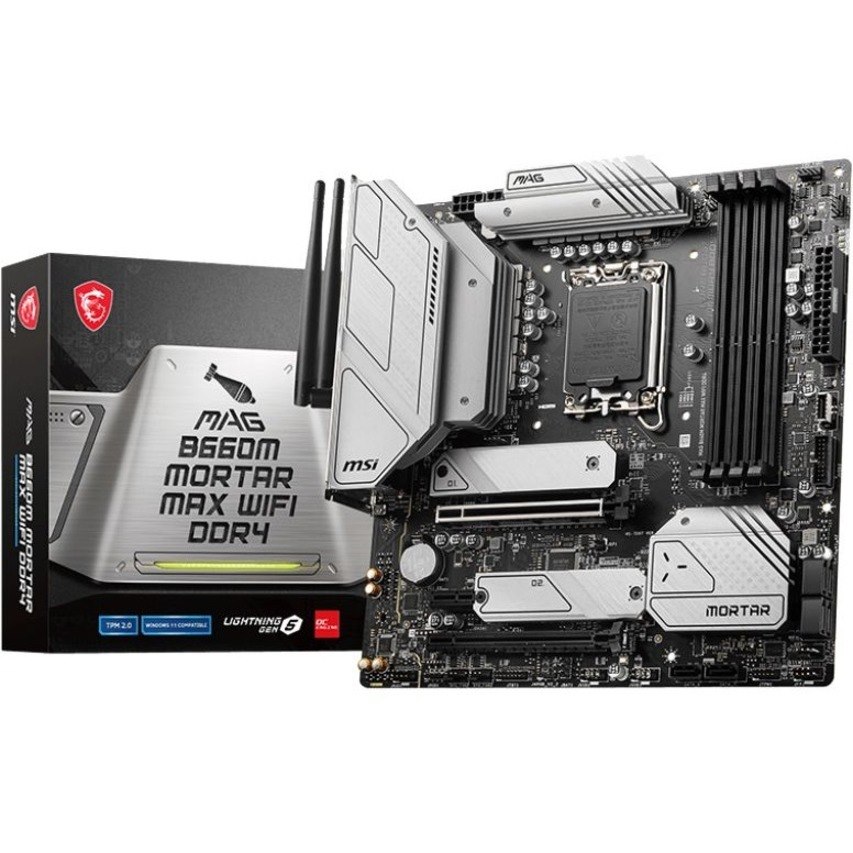

- MAG B660M MORTAR MAX WIFI DDR4 Desktop Motherboard
- MAG Stickers
- EZ M.2 Clips
- 2 x SATA Cables
- Wi-Fi Antenna
