- General Information
- Manufacturer
- MSI
- Manufacturer Website Address
- http://www.msi.com
- Brand Name
- MSI
- Product Line

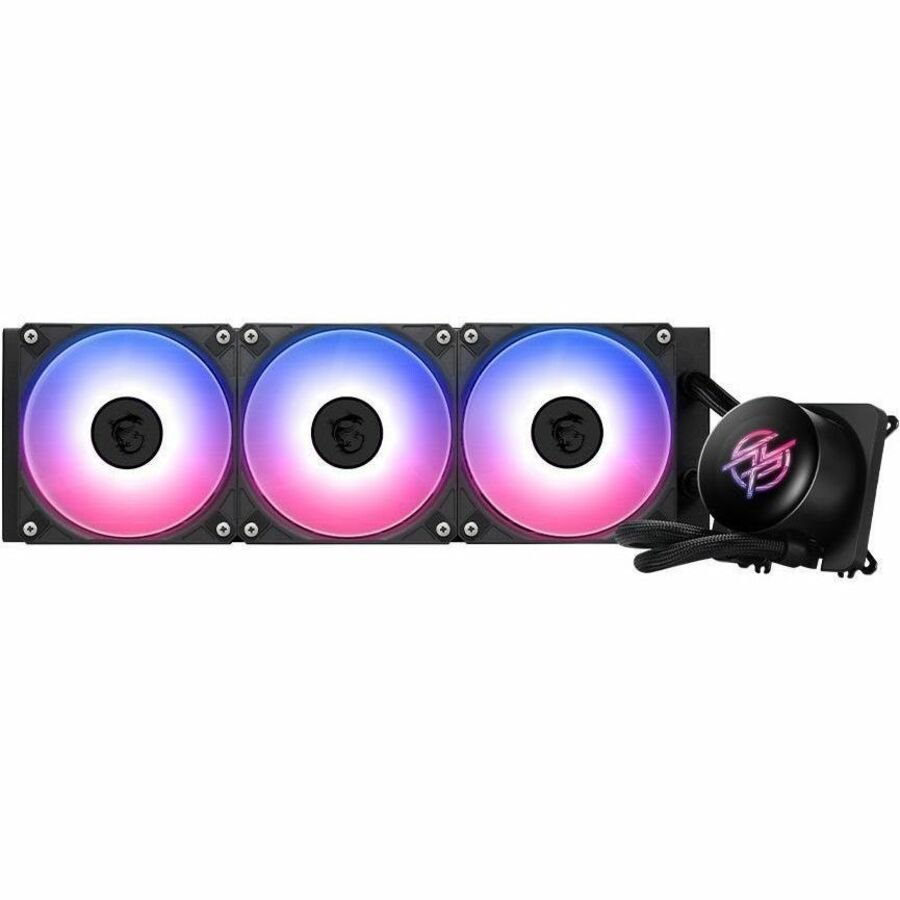

- MPG CORELIQUID
- Product Condition
- New
- Package Type
- Retail
- Product Type
- Cooling Fan/Radiator/Pump
Elegance Redefined
Crafted with a fully curved glass cover, the water block takes inspiration from the smooth contours of a water droplet - elegant, weightless, and pure. All tubing and cables are concealed within, ensuring an uninterrupted silhouette. Rounded screw covers refine the final touch, delivering a minimalist design.
Full CPU Coverage
The new generation full-plane copper base eliminates the traditional screw perforation design, significantly enhancing water-tightness and ensuring more reliable system operation. Equipped with a precise 0.1mm micro-channel design, it efficiently absorbs CPU heat and works in tandem with the high-performance pump to quickly dissipate heat, delivering exceptional cooling performance.
2.1'' LCD
The 2.1-inch LCD (480*480) screen supports real-time monitoring, animated visuals, or personalized content. Use it as a secondary display for dynamic system feedback and next-level customization.
Streamline
Streamline is MSI's latest hidden-cable design technology that fully integrates all power and signal cables for the water block directly into the sleeved tubing, eliminating any visible external wires.
CycloBlade 9 hybrid blade design
MSI's CycloBlade 9 fan features a hybrid blade design, delivering powerful airflow and high static pressure. This ensures extreme cooling performance during intense gaming while maintaining low noise levels for an immersive experience.
Split-Flow Radiator
The aluminum radiator employs a 12-channel, split-flow design that divides incoming heated water and outgoing cooled water into two 6-channel paths.
This improves thermal dissipation between coolant and fan-cooled air.
Tubing comprises of multi-layered netted plastic concealed beneath reinforced mesh sheathing to ensure that coolant stays inside the closed-loop system at all times.
EZ CAP
Refined screw cap design ensures a smooth, cohesive look throughout your build. No hard edges, no visual clutter - just clean lines and calm precision.
MSI Center Optimization
MSI Center software unlocks multiple cooling profiles as well as customizable fan curve settings through an MSI motherboard:
- Silent, Game Mode, and Balanced profiles
- Customizable radiator fan speed curves
UNI Bracket
The pre-installed and easy-to-use UNI Bracket supports both Intel and AMD sockets, significantly reducing assembly time and improving the quality of DIY builds for gamers.
- Warranty
- Limited Warranty
- 3 Year
- Fan Information
- Number of Fans
- 3
- Fan Bearing Type
- Rifle Bearing
- Fan Speed (Min)
- 500 rpm
- Fan Speed (Max)
- 2050 rpm
- Maximum Airflow
- 64.90 CFM
- Noise Levels (A-Weighted)
- 20 dB(A)
- Fan Life
- 4.6 Year
- LED Color
- ARGB
- Pulse-width Modulation (PWM) Support
- Yes
- Heatsink Information
- Cooler Type
- Liquid
- Compatible Intel Socket
- LGA-1700
- Socket LGA-1851
- Compatible AMD Socket
- AM4
- AM5
- Interfaces/Ports
- Connectors
- 5V ARGB 3-PIN Header
- Power Description
- Maximum Power Consumption
- 1.68 W
- Rated Current
- 140 mA
- Physical Characteristics
- Radiator Material
- Aluminum
- Radiator Height
- 15.51"
- Radiator Width
- 4.71"
- Radiator Depth
- 1.07"
- Fan Height
- 4.72"
- Fan Width
- 4.72"
- Fan Depth
- 0.98"
- Weight (Approximate)
- 4.06 lb
- Miscellaneous
- Features
- IPS LCD Display
- Application/Usage
- CPU
- Motherboard
