- General Information
- Manufacturer
- PANDUIT CORP
- Manufacturer Website Address
- http://www.panduit.com
- Brand Name
- IndustrialNet
- Packaged Quantity
- 1
- Product Type
- Network Connector

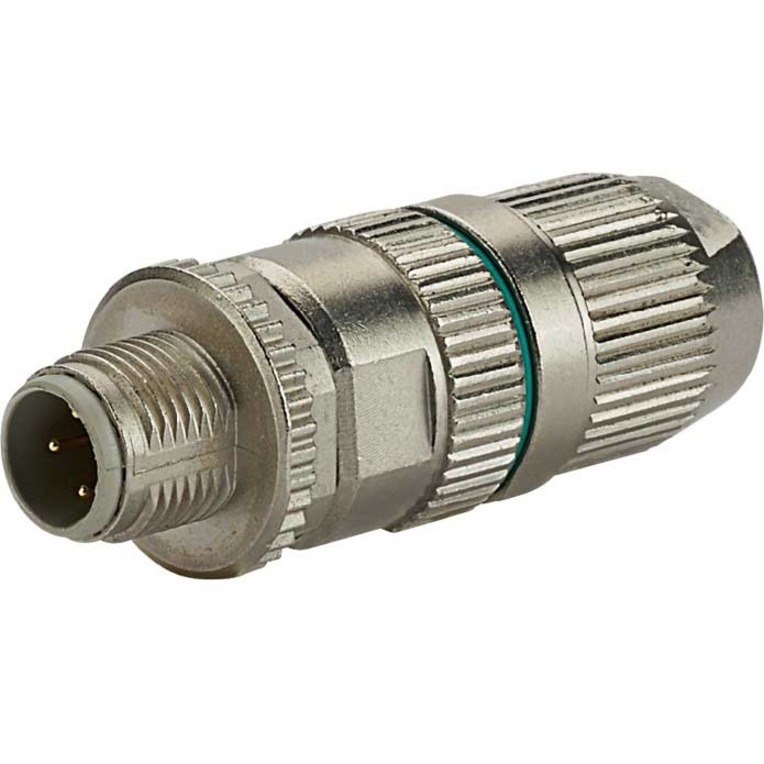

The M12 D-Code modular plug is field terminable for use with industrial grade, 26/7 - 22/7 AWG stranded, Cat 5e UTP or shielded copper cable. The terminable plug is constructed of a zinc cast housing with a 360° shield. The plug has an ingress protection rating of IP65/IP67 and offers an extended temperature range as required for more demanding applications. It is easily attachable without any special tools and is capable of termination to a 2-pair stranded or solid twisted-pair copper cable.
- Technical Information
- Connector Type
- M12-D - Male
- Connector Details
- 1 x M12-D - Male
- Connector Plating
- Nickel
- Chrome
- Shielding
- Yes
- Ingress Protection (IP) Rating
- IP65
- IP67
- Features
- PoE
- Stranded
- EMI/RF Protection
- Physical Characteristics
- Color Family
- Other
- Product Color
- Metallic
- Product Material
- Die-cast Zinc
- Material Details
- die-cast Zinc - Housing
- Height
- 0.8"
- Width
- 0.6"
- Depth
- 2.1"
- Miscellaneous
- Compatibility
- Panduit Cables:
- ISFCH5C02A
- ISFX5502ATL-LED
- ISFX5502ARD-LED
- ISTPHCH1MTL
Panduit Devices:
- ICAM12DRJS
- CDPP8RG
- CADIN1IW
- Environmentally Friendly
- Yes
