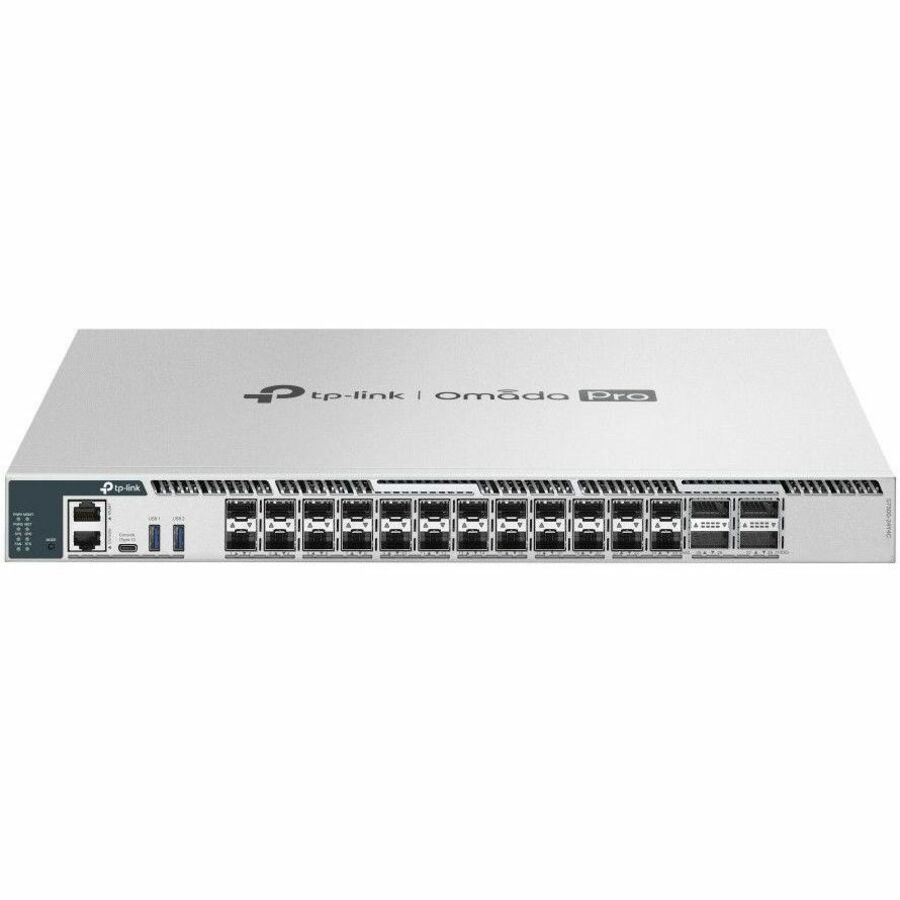

Omada Pro is an intelligent cloud solution for enterprise networking, offering enterprise-grade product line designed to meet the high-capacity, security, and management needs of various industries, such as MDUs, hospitality, K-12 education, public works, and more.
- General Information
- Manufacturer
- TP-LINK Technologies Co., Ltd
- Manufacturer Website Address
- http://www.tp-link.com/us
- Brand Name
- TP-Link
- Product Line
- Omada Pro
- Product Type
- Ethernet Switch
- Technical Information
- Features
- Hot-swappable
- Loop Protection
- Secure Boot
- Surge Protection
- DHCP Snooping
- Interfaces/Ports
- Uplink Port
- Yes
- Stack Port
- Yes
- Port/Expansion Slot Details
- 24 × 1/10/25 Gigabit Ethernet SFP28 Expansion Slot
- 4 × 40/100 Gigabit Ethernet QSFP28 Expansion Slot
- 1 × RJ-45 Console Port
- 1 x USB Type C Console Port
- 1 × RJ-45 Management Port
- 2 × USB 3.0 USB Port
- Media & Performance
- Media Type Supported
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- 10 Gigabit Ethernet
- 25 Gigabit Ethernet
- 40 Gigabit Ethernet
- 100 Gigabit Ethernet
- Network Technology
- 1000Base-X
- 10GBase-X
- 25GBase-X
- 40GBase-X
- 100GBase-X
- Maximum Data Transfer Rate
- 12.50 GB/s
- I/O Expansions
- Total Number of Expansion Slots
- 28
- Expansion Slot Type
- SFP28
- QSFP28
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.1x
- IEEE 802.3x
- IEEE 802.3ad
- IEEE 802.1Q
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.1ab
- IEEE 802.1p
- Management & Protocols
- Manageable
- Yes
- Reliability
- MTBF
- 382117 Hour
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- Power Supply
- AC
- Redundant Power Supply Supported
- Yes
- Number of Power Supplies Supported
- 2
- Number of Power Supplies Installed
- 1
- Power Consumption
- 137.63 W
- Physical Characteristics
- Color Family
- Gray
- Product Color
- Gray
- Form Factor
- Rack-mountable
- Height
- 1.7"
- Width
- 17.3"
- Depth
- 15"
- Miscellaneous
- Application/Usage
- Enterprise
- Network
- Education
- Retail
- Security
