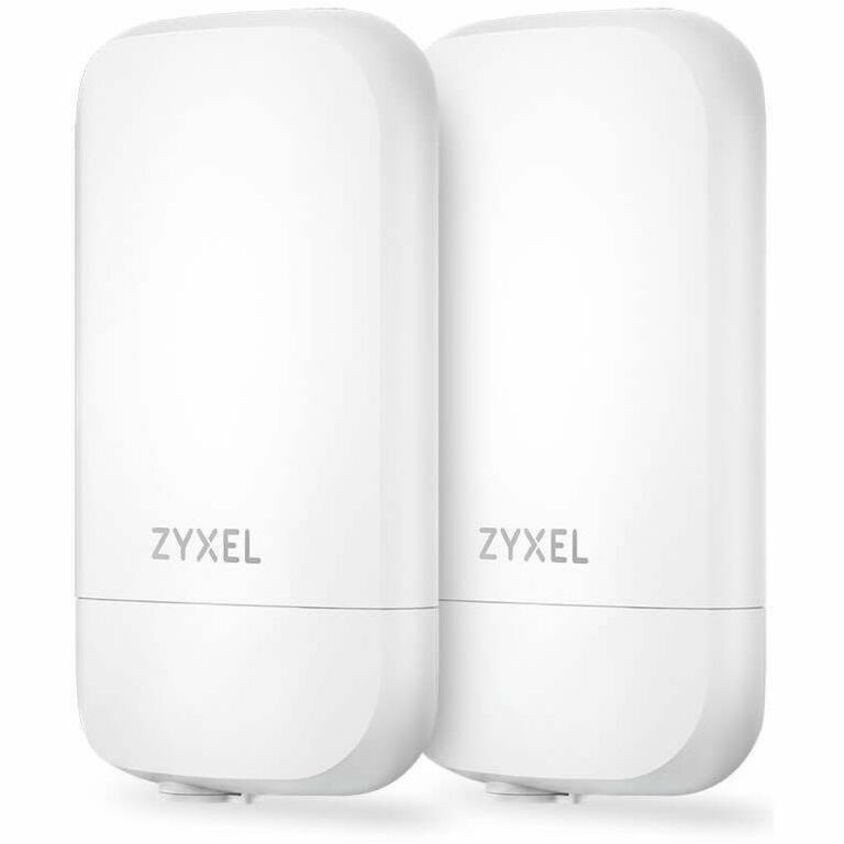

The NWA55AX PTP is an AX2400 2-stream WiFi 6 outdoor wireless bridge designed to deliver reliable, high-speed connectivity over long distances. Operating on 5GHz (2x2:2) 802.11ax technology, it supports data rates of up to 2.4Gbps, making it ideal for point-to-point wireless backhaul applications.

Engineered for extended range, the NWA55AX PTP enables stable wireless links of up to 5km (3 miles), providing a powerful and cost-effective solution for connecting campuses, farms, warehouses, or remote outbuildings without the need for cabling. Its 160MHz channel width further enhances performance by creating a wider wireless backhaul, increasing throughput and ensuring faster, more stable connectivity even in demanding environments.

Deployment is simple and efficient with the pre-configured 2-piece kit, which comes factory-paired to enable true out-of-the-box operation. With auto-pairing functionality and a clear LED indicator on the repeater, users can quickly establish and verify the connection, significantly reducing installation time and complexity.

A dedicated 2.4GHz radio is reserved for management access, allowing users to connect to the device for configuration and monitoring without impacting the 5GHz wireless backhaul link. This ensures stable bridge performance while still providing convenient local access for maintenance and setup when needed.

Built for outdoor durability, the NWA55AX PTP features an IP55-rated weatherproof enclosure and an operating temperature range of -30°C to 50°C, ensuring reliable performance in harsh environmental conditions. Its sleek, compact design with integrated internal antennas not only enhances visual appeal but also protects critical antenna components from damage, ensuring long-lasting performance in outdoor deployments. The wireless bridge can be powered by a PoE switch or by the PoE injector included in the package, ensuring flexible and simplified installation.

Benefits | Seamless Out-of-the-Box Setup with Auto-Pairing Design

The NWA55AX PTP is designed to deliver a true out-of-the-box experience, enabling fast and effortless deployment with minimal setup required. The pre-configured 2-piece kit comes factory-paired, allowing both units to connect automatically upon installation. With auto-pairing functionality and a clear LED indicator on the repeater, users can quickly verify link status and complete installation with confidence. This streamlined design significantly reduces configuration time and complexity, making it ideal for rapid outdoor wireless bridge deployment.

Extended 5km Range with 5 GHz WiFi 6 Performance

The NWA55AX PTP leverages 5GHz WiFi 6 technology to deliver long-distance wireless connectivity of up to 5km (3 miles), enabling stable and high-performance point-to-point links. By operating on the 5GHz band, it minimizes interference while maximizing throughput, making it ideal for reliable outdoor backhaul connections over extended distances. Combined with WiFi 6 efficiency improvements, it ensures consistent performance, lower latency, and enhanced stability even in challenging outdoor environments.

Compact, Durable Design for Easy Deployment

The NWA55AX PTP's compact form with integrated internal antennas simplifies installation and eliminates the need for manual adjustments. Its IP55-rated enclosure and enclosed antennas protect against dust, rain, and physical impact, enhancing durability and reducing maintenance. The sleek, unobtrusive design allows flexible wall or pole placement, making it an ideal solution for extending reliable outdoor wireless connectivity with minimal effort and optimized cost.
