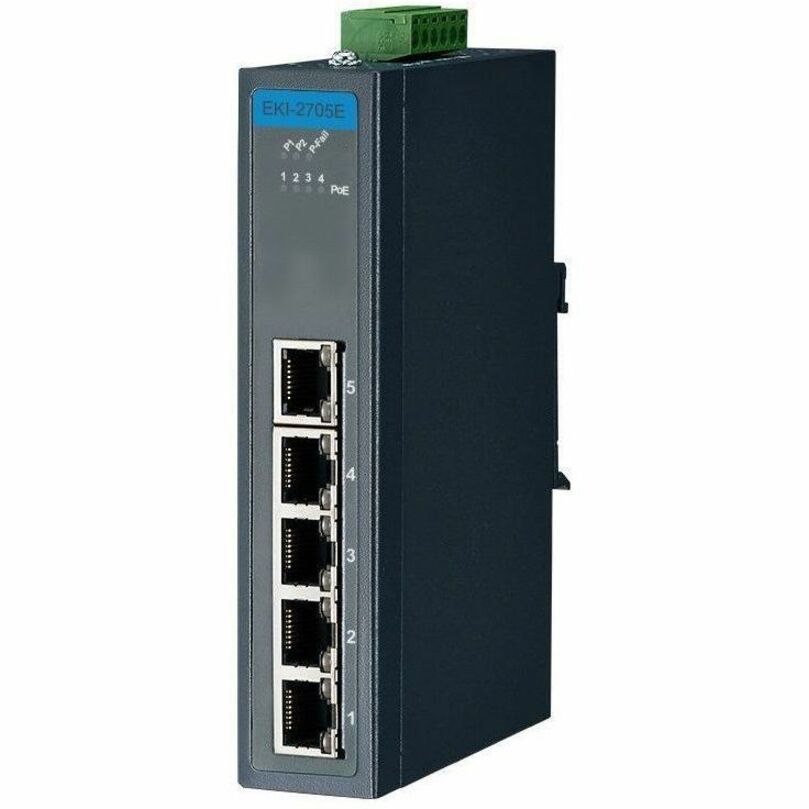

The EKI-2705 series supports 24 ~ 48VDC redundant power input and is secured with a double protection mechanism: power polarity reverse protection and an overload current fuse. The EKI-2705 series supports up to 4-port IEEE 802.3 af/at PoE /PoE+ ports. Each port of EKI-2705 has two LED indicators to show the link status transmission speed. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify, administrators. Engineers can simply verify the hardware status by checking the LED to make troubleshooting easily and fast. EKI-2705 comes with a compact metal housing rated at IP30 to protect against dusty industrial environments.
- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Series
- EKI-2705
- Product Type
- Ethernet Switch
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Features
- IP30
- Interfaces/Ports
- Total Number of Network Ports
- 5
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 4 x 10/100/BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port
- 1 x 10/100/1000BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port
- Media & Performance
- Media Type Supported
- Twisted Pair
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- Maximum Data Transfer Rate
- 128 MB/s
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3
- Management & Protocols
- Manageable
- No
- Reliability
- MTBF
- 1697086 Hour
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 90 W
- Input Voltage
- 24 V DC
- 48 V DC
- Power Source
- DC
- Redundant Power Supply Supported
- Yes
- Power Consumption
- 2 W
- Plug/Connector Type
- Terminal Block
- Physical Characteristics
- Product Material
- Metal
- Form Factor
- DIN Rail Mountable
- Wall Mountable
- Enclosure
- Compact
- Height
- 5.5"
- Width
- 1.2"
- Depth
- 3.7"
- Weight (Approximate)
- 15.87 oz
- Miscellaneous
- Application/Usage
- Network
- Industrial
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
